14" Jacob Ladder Complete (with straps). Nuts/Bolts not included. Plated.
When choosing the correct Jacobs Ladder length for your Sprint Car, keep this in mind: the shorter the ladder, the shorter the amount of time it will take to get you on your right rear, and the shorter the amount of time you'll spend on the tire. A 13 5/8" ladder will get on to your right rear faster, but hold your car on the tire a shorter amount of time than a 14".
|
|
|
|
Technical Specs
|
|
|
|
|
Size: 14" (along diagonal - see diagram below for dimensions)
Material: 4130 Chromoly
Diameter: 3/4"
Wall Thickness: .065"
Finish: Plated.
Strap Material: 6061 T6 Aluminum
Strap Dimensions: 1" X 1/4" X 7" (hole center to center)
Total weight (with straps): 2.4 lb
|
|
|
|
|

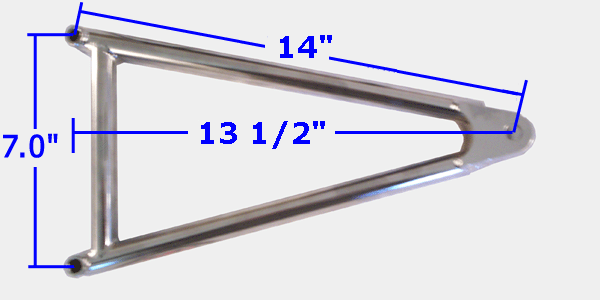

Dimensions
|
|
|
|
|
|
|
|
|
